100 resistor between A and B ports is recommended. When A-B >+0.2V, RO pin outputs logic 1 when A-B -0.2V, RO pin outputs logic 0.
#Rs485 can hat driver
A is the non-inverting Driver Output/Receiver input port, and B is the inverting Driver RS485 Will HAT 7 / 24 Output/Receiver input port. RE is the Active LOW Receiver Output Enable pin, and DE is the Active HIGH Driver Output Enable pin. The Receiver output pin is RO, and the Driver input pin is DI.
#Rs485 can hat serial

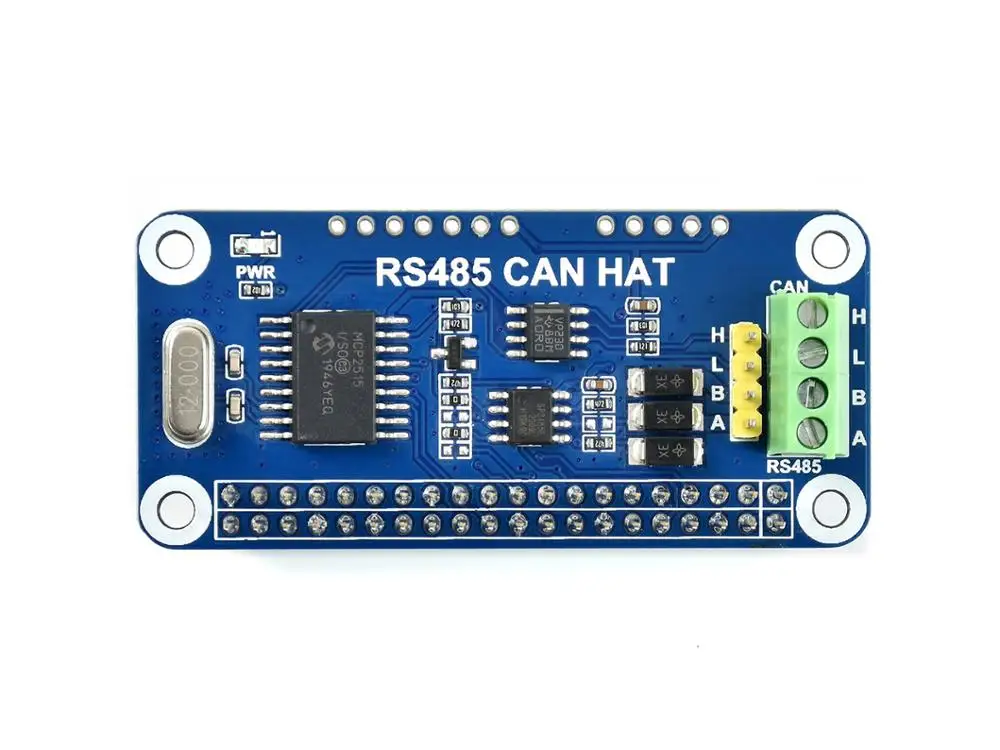

The SP3485 is a low-power half-duplex transceiver that complies with RS485 serial protocol specifications. RS485 CAN HAT transceiver SP3485 Transceiver Overview The kernel driver needs to be enabled on the devices tree. This means that the Raspberry Pi can interact with the MCP2515 using the SPI interface without the need for an external driver. The MCP2515 communicates with microcontrollers (MCUs) using an industry standard Serial Peripheral Interface (SPI). The MCP2515 has two acceptance masks and six acceptance filters for filtering out unwanted messages and thereby lowering the host MCU's overhead. It can send and receive both standard and extended data, as well as remote frames. The MCP2515 from Microchip Technology is a standalone Controller Area Network (CAN) controller that implements the CAN 2.0B specification. Since the Raspberry Pi does not support the SPI bus, this module uses the SPI interface and has a CAN receiver/transmitter on board. If there are no errors, store the packet in one of the buffers. It will first search for any errors in packets detected on the CAN BUS RS485 HAT for Raspberry Pi, and then verify them using a filter specified by the user. For detecting communication states and errors, registers could be read. To set the bits on the control register or allow the transmit pin for transmitting, use the SPI interface. Packets are transmitted by first storing them in the appropriate buffer and control register. On the CAN bus, the CAN module may process packets sent and received.
#Rs485 can hat manual
Includes development tools and a manual (examples of Pi/python wiring).Control pins are reserved, allowing you to interact with other control boards.
#Rs485 can hat series
You can use both the standards/protocols at the same time because each of them uses different peripheral for communication. Yes, this board support both RS485 and CAN, birectional communication. This RS485/CAN HAT will enables your Raspberry Pi to communicate with other devices stably in long-distance via RS485/CAN protocol. RS485 is one of the most robust wired serial communication protocol that can support distance upto 1200 meters (4000 ft) while CAN (Controller Area Network) is used in automotive that offer high immunity to noise in cars.
